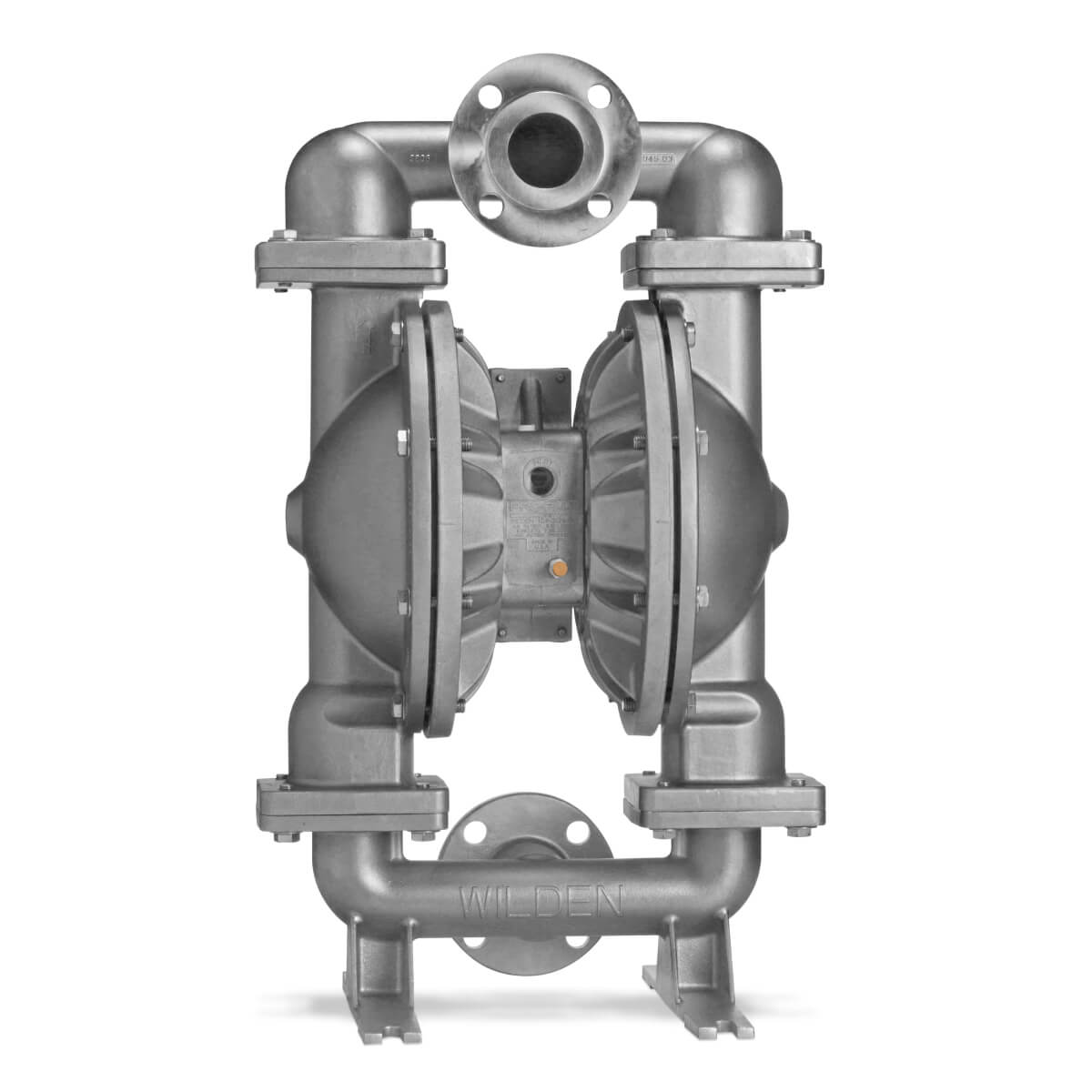

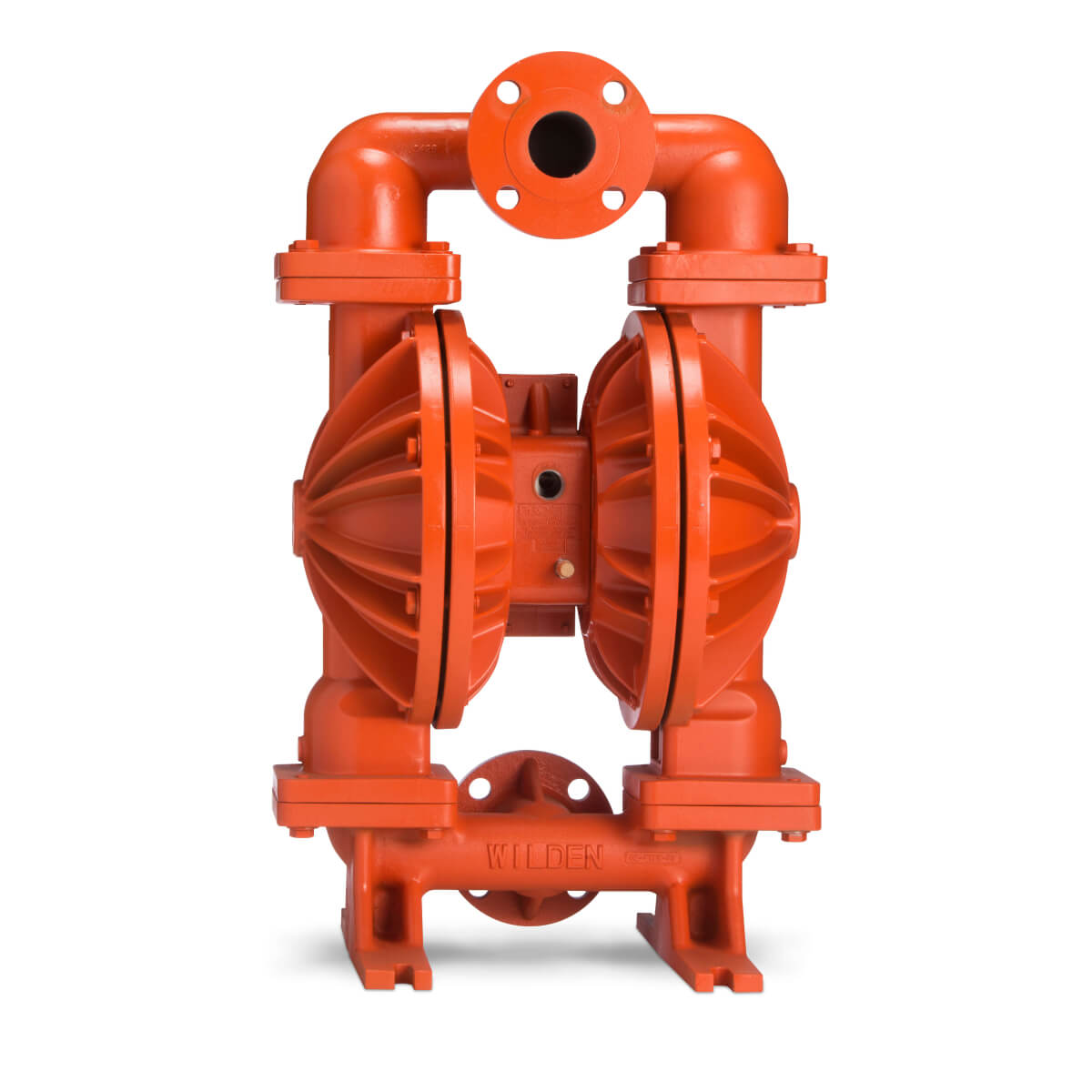

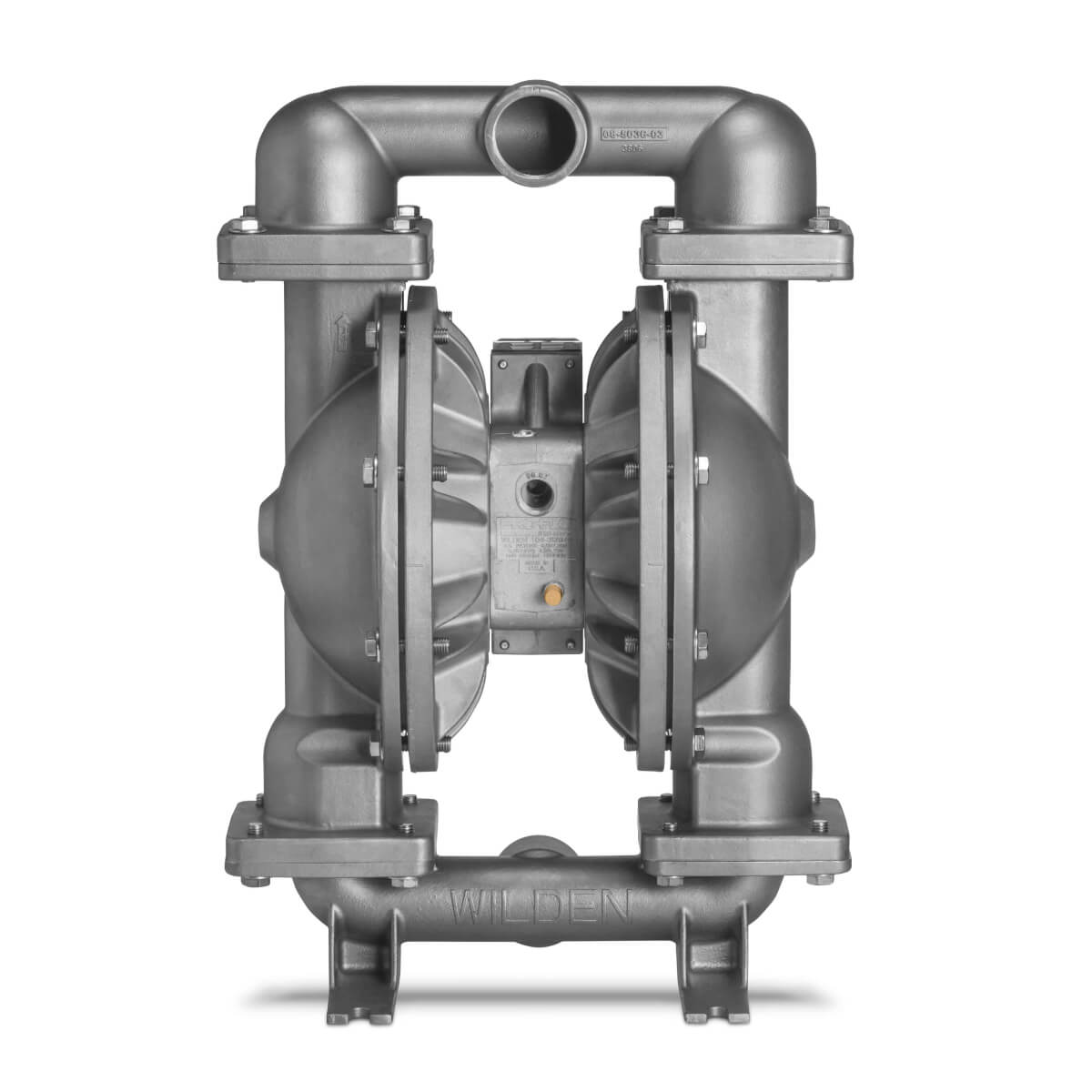

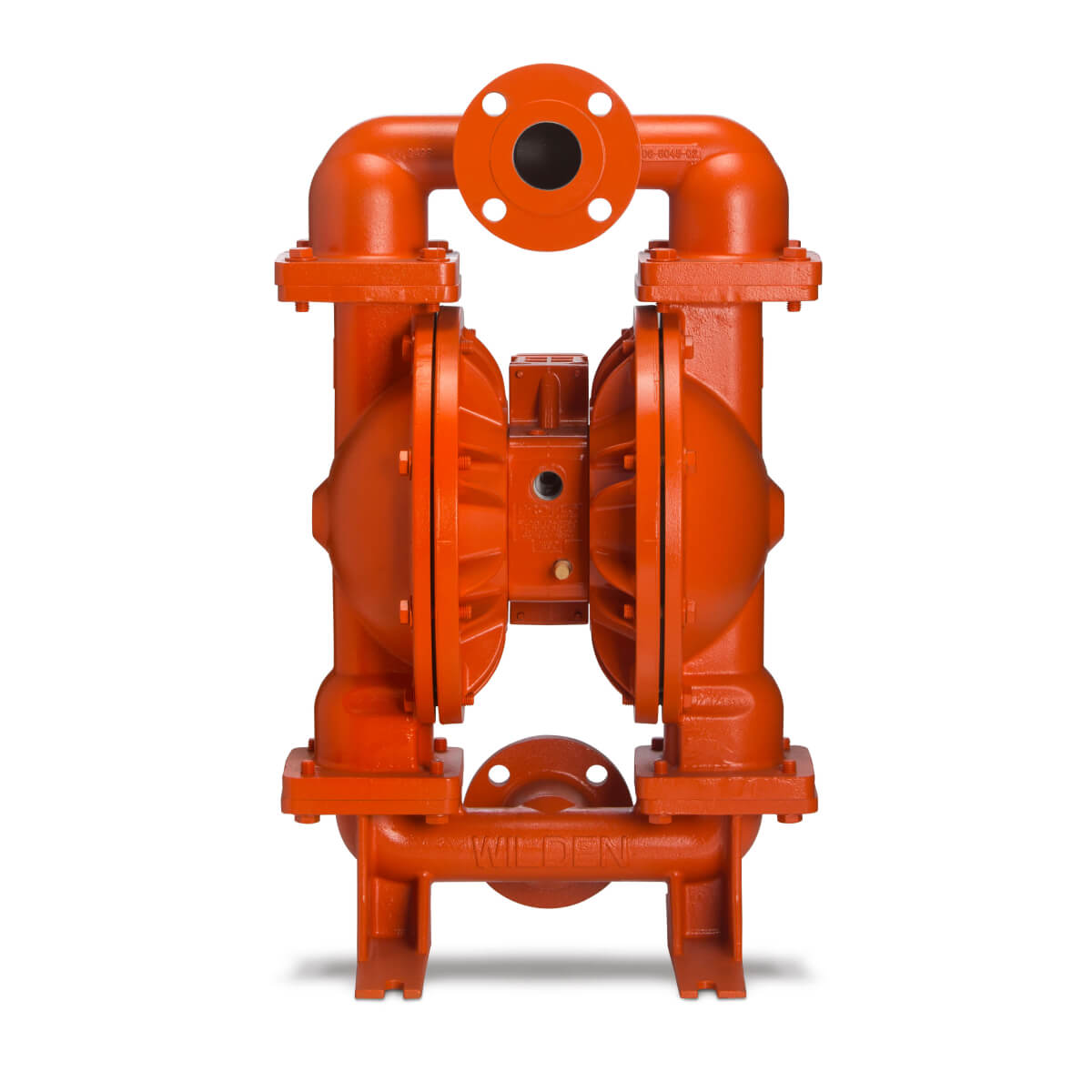

51 mm (2") Pro-Flo® SHIFT Series 螺栓金属泵PS820/PS830

AIR INLET进气口

• 3/4" FNPT

LIQUID INLET进口

• 51 mm (2")

LIQUID DISCHARGE出口

• 51 mm (2")

CONNECTION TYPE接口形式

• NPT/BSPT (Threaded)
• DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY最大自吸

• Rubber – 7.1 m (23.3') Dry, 9.0 m (29.5') Wet
• EZ-Install TPE – 7.0 m (23.1') Dry, 9.0 m (29.5') Wet
• Full-Stroke PTFE – 6.6 m (21.8') Dry, 9.0 m (29.5') Wet

MAX FLOW RATE最大流量

• Rubber – 685 lpm (181 gpm)
• EZ-Install TPE – 668 lpm (176 gpm)
• Full-Stroke PTFE – 655 lpm (173 gpm)

MAX PRESSURE最大压力

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS最大颗粒

• 6.4 mm (1/4")

DISPLACEMENT PER STROKE每冲程排量

• Rubber – 2.8 L (0.73 gal)
• EZ-Install TPE – 2.6 L (0.70 gal)
• Full-Stroke PTFE – 2.5 L (0.65 gal)
* 1 cycle = 2 strokes
