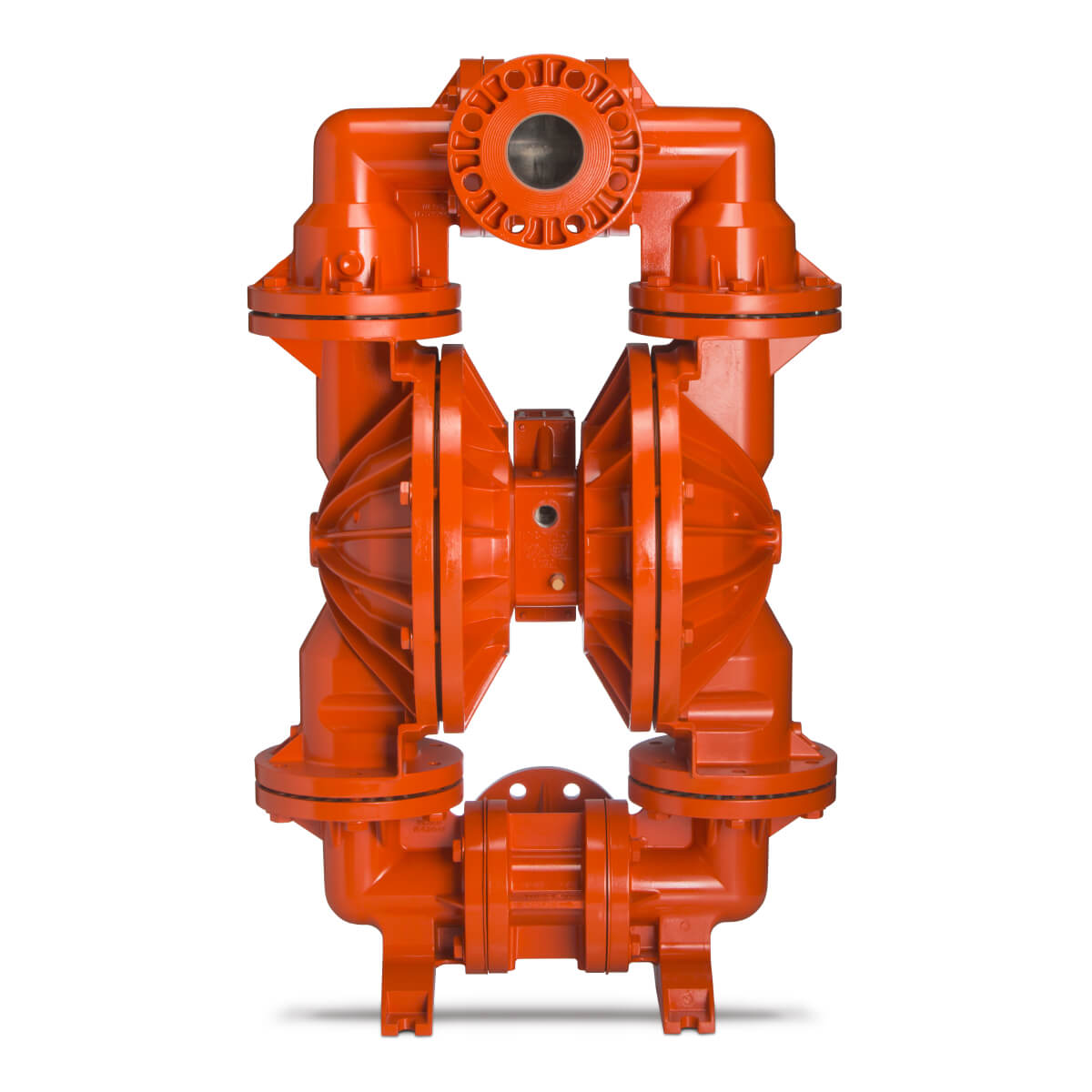

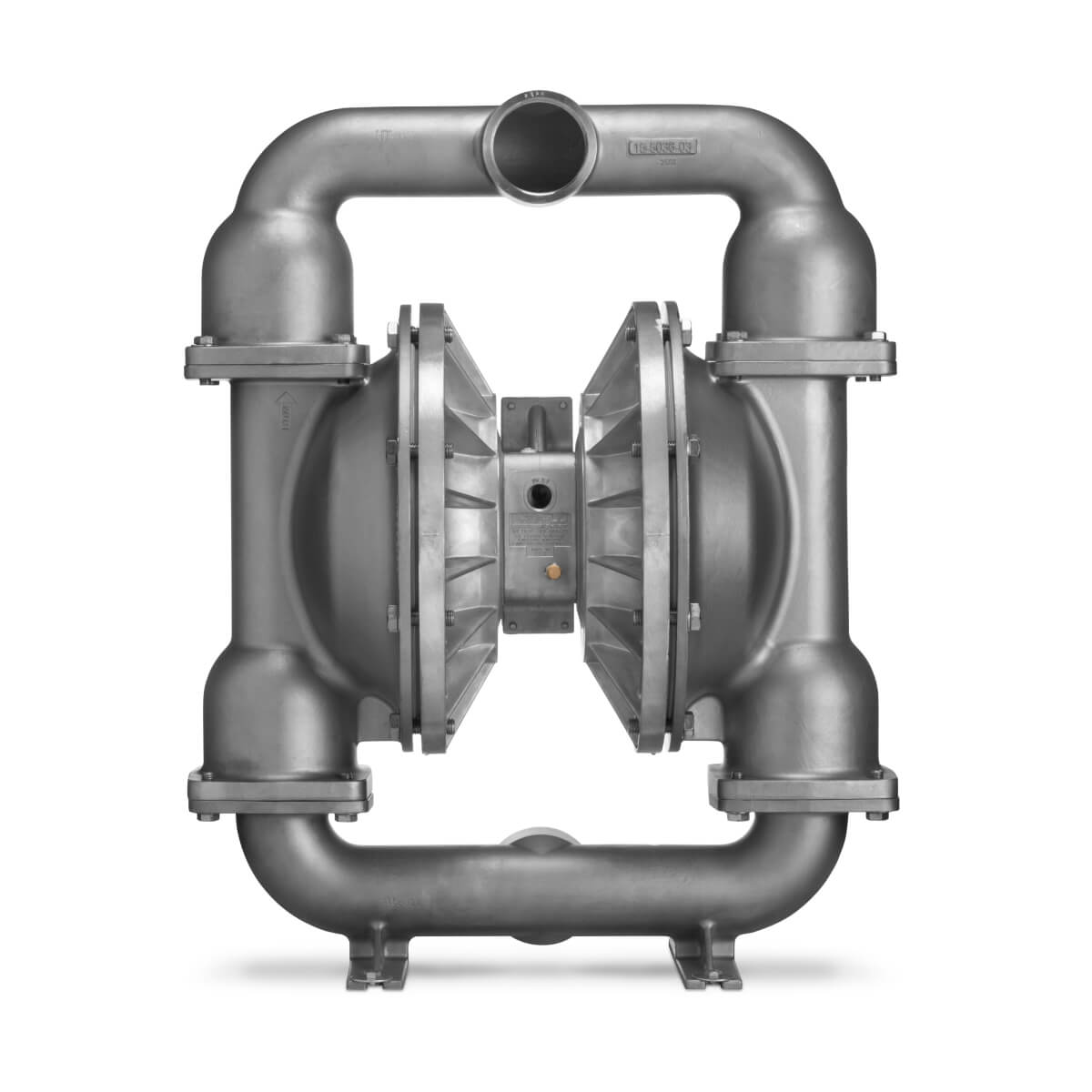

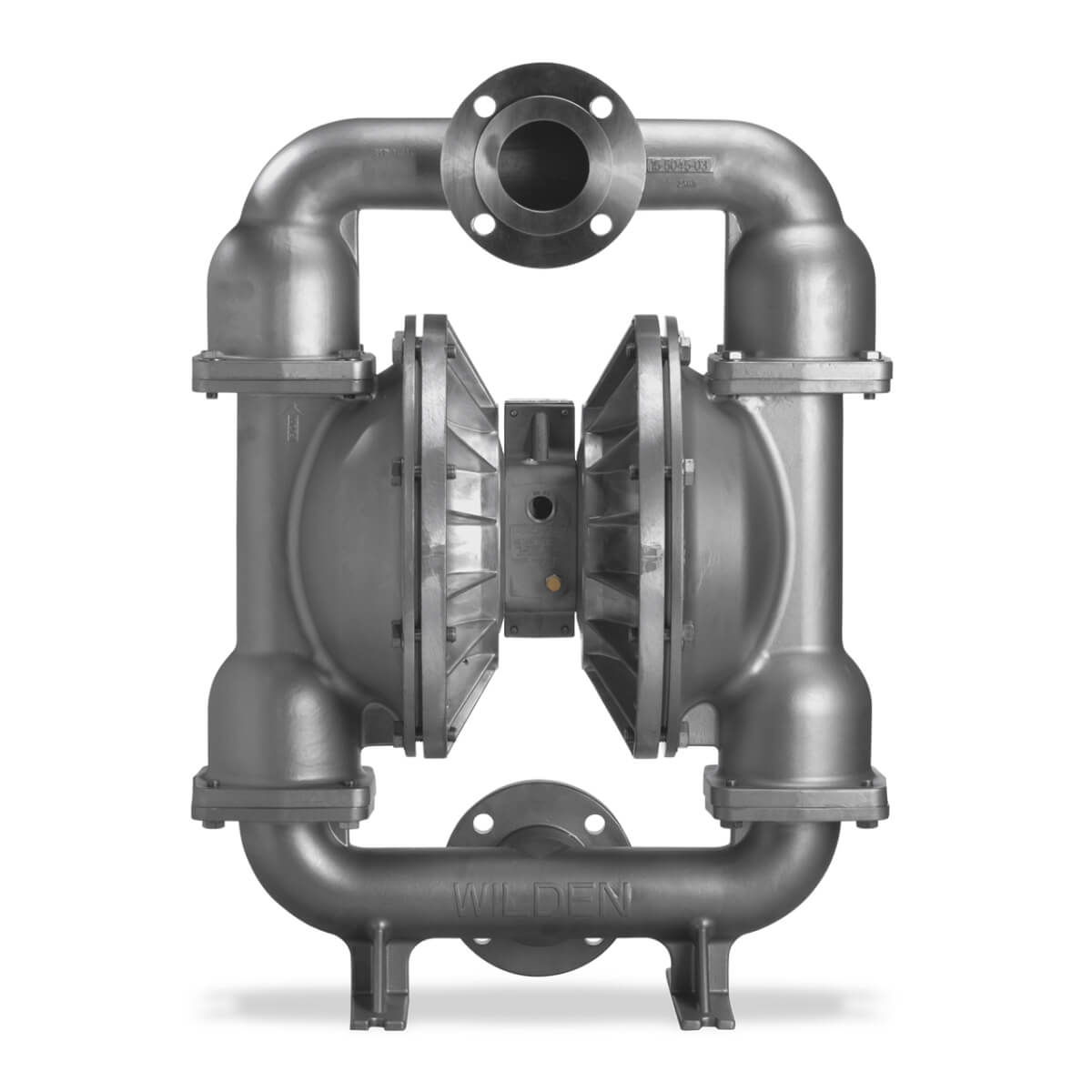

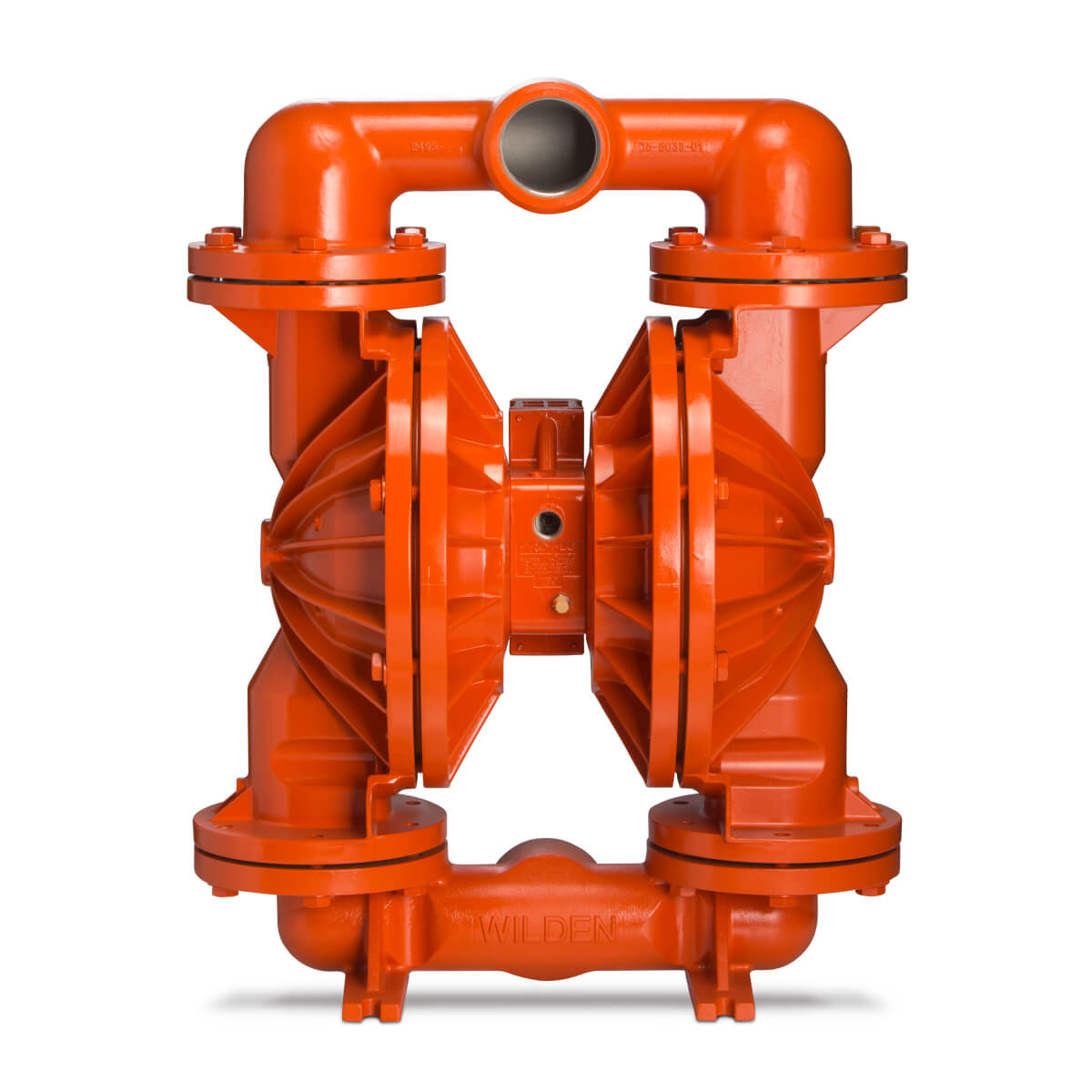

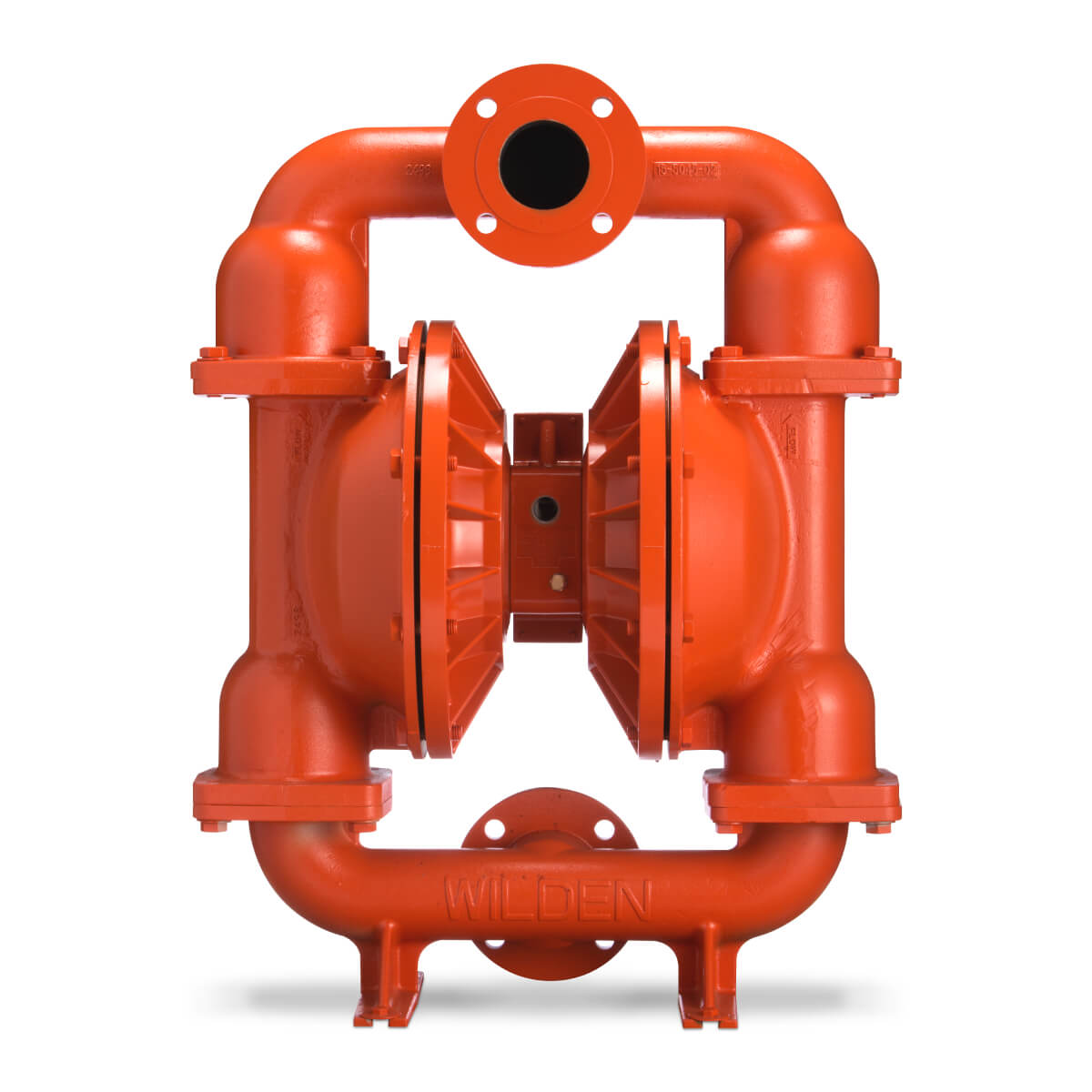

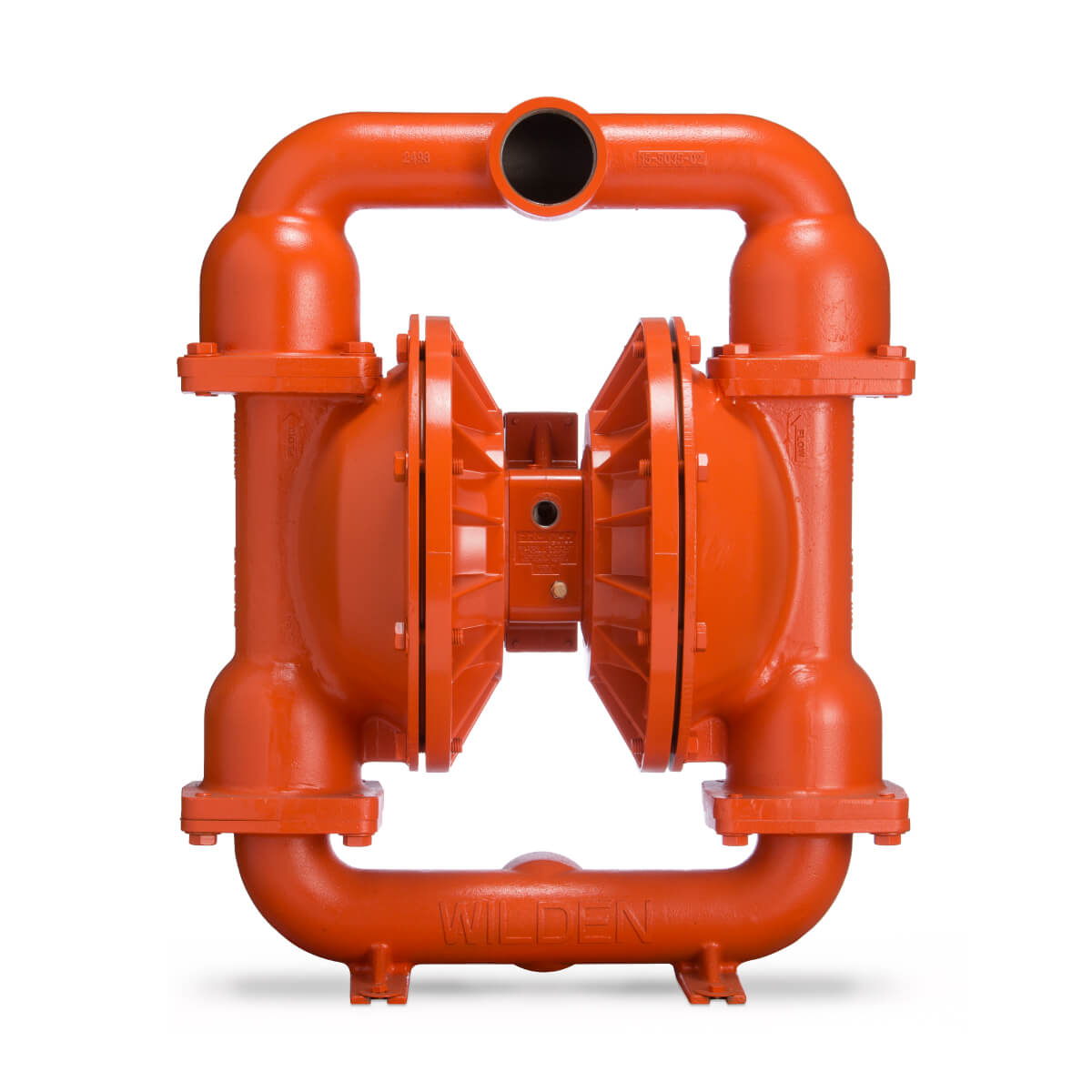

76 mm (3") Pro-Flo® SHIFT Series 螺栓金属泵(PS1520/PS1530)

AIR INLET进气口

• 3/4" FNPT

LIQUID INLET进口

• 76 mm (3")

LIQUID DISCHARGE出口

• 76 mm (3")

CONNECTION TYPE接口形式

• NPT/BSPT (Threaded)
• DIN/ANSI (Flanged)

DISPLACEMENT PER STROKE每冲程排量

• Rubber – 5.1 L (1.35 gal)
• EZ-Install TPE – 5.4 L (1.43 gal)
• Full-Stroke PTFE – 5.0 L (1.32 gal)
• Full-Stroke PTFE (Ductile Iron) – 4.8 L (1.26 gal)

MAX FLOW RATE最大流量

• Rubber – 1,026 lpm (271 gpm)
• EZ-Install TPE – 1,026 lpm (271 gpm)
• Full-Stroke PTFE – 992 lpm (262 gpm)
• Full-Stroke PTFE (Ductile Iron) – 874 lpm (231 gpm)

MAX PRESSURE最大压力

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS最大颗粒

• 12.7 mm (1/2")

MAX SUCTION LIFT CAPABILITY最大自吸

• Rubber – 7.2 m (23.8’) Dry, 9.7 m (31.8’) Wet
• EZ-Install TPE – 6.4 m (21.1') Dry, 9.7 m (31.8’) Wet
• Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
• Full-Stroke PTFE (Ductile Iron) – 5.9 m (19.5') Dry, 9.7 m (31.7') Wet
